General Description

The YDL-series explosion-proof integrated piezoelectric vibration transmitter is mainly composed of piezoelectric elements, amplifiers, integrating circuits, voltage and current conversion circuits, etc.Composition, excellent dynamic characteristics, wide frequency response, long life, and compact appearance. Stainless steel shell, fully sealed design, waterproof and dustproofAt the same time, it has a wide response frequency range, excellent dynamic characteristics, wiring fault tolerance protection, good stability and strong anti-interference ability.canChoose to measure the vibration acceleration, velocity or displacement value of the chassis.

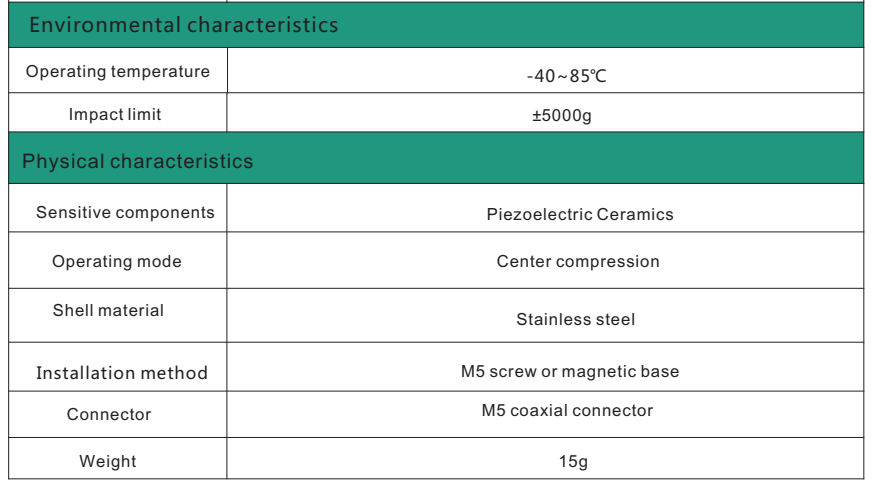

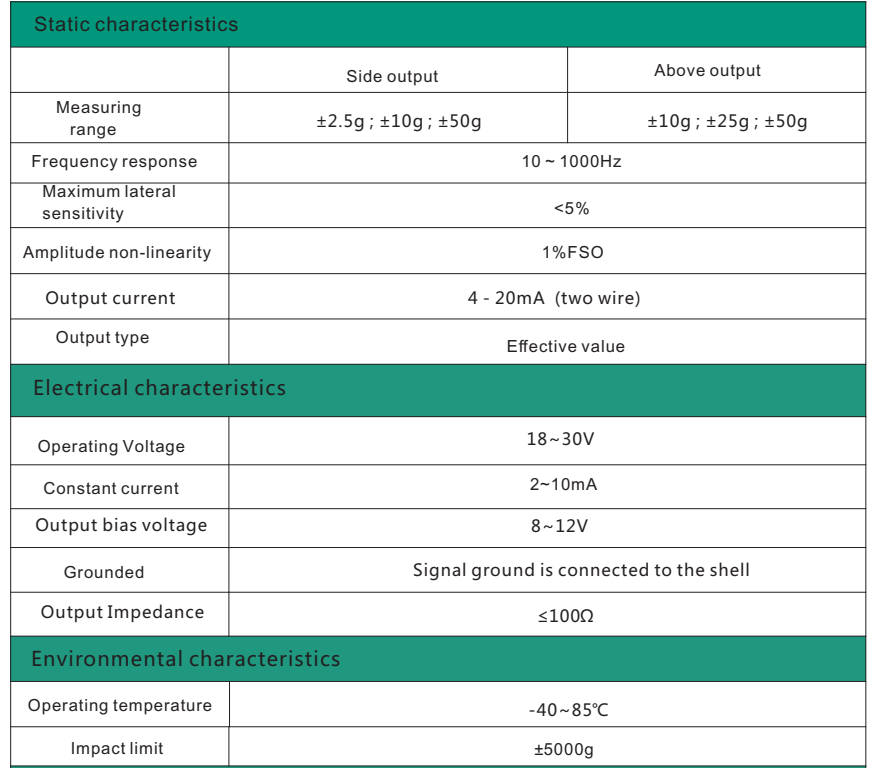

Performance

Measuring direction

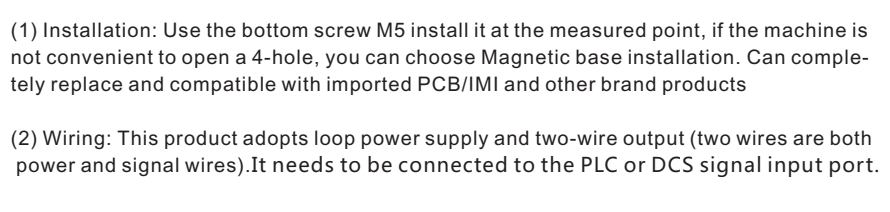

Production installation notes
