HVT120T digital signal output

●Measuring Range :±1~±90° optional
●Resolution: 0.1°
●Output modeRS232、RS485、TTL
●IP67 protection class
●Working temperature: -40°C~+85°C

Product Details

General Description

HVT120T series tilt module is a low-power, high-performance tilt module. The MEMS tilt measurement unit imported from Europe is used internally. It has a built-in industry standard MCU unit and integrates advanced filtering algorithms. Consistency. The HVT column inclination module can select the appropriate output interface according to the actual situation of the customer. It is the best choice for industrial automation control, leveling adjustment, and dam bridge detection. In addition, HVT series products can be customized To be customized

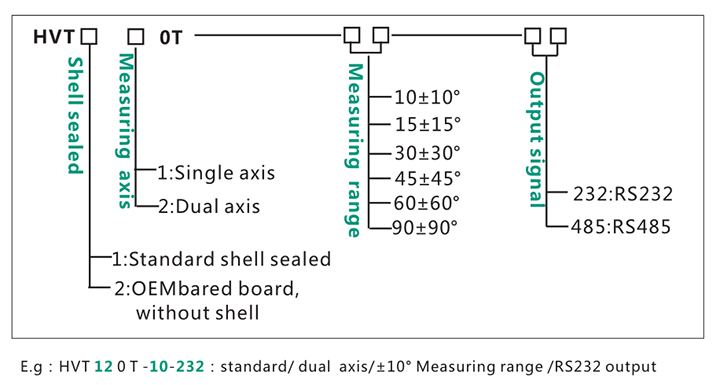

Ordering information

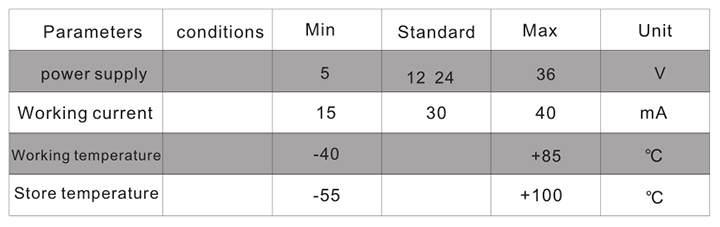

Electrical parameters

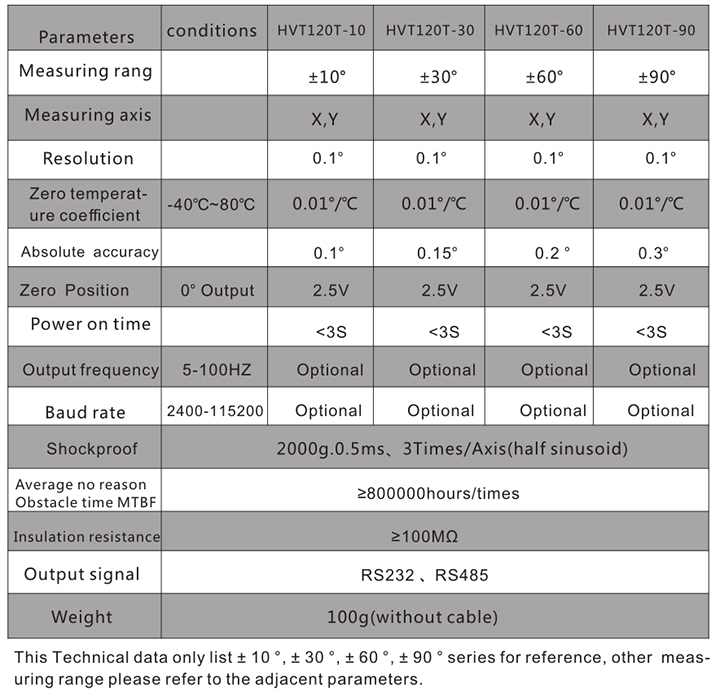

Technical Data
