HVT110T small size sensor

●Measuring Range :±1~±90° optional
●Resolution: 0.1°
●DC Wide voltage input: 9~36V
●Output modeRS232、RS485、TTL
●IP67 protection class

Product Details

General Description

The HVA110T series tilt module is a low-power, high-performance tilt module. It adopts the MEMS tilt angle measurement unit imported from Europe, built-in industry standard MCU unit, and integrates advanced filtering algorithm to ensure the performance of each module Consistency. The HVT column inclination module can choose the appropriate output interface according to the actual situation of the customer. It is the best choice for industrial automation control, leveling adjustment, and dam bridge inspection. In addition, HVA series products can be customized The actual needs to be customized.

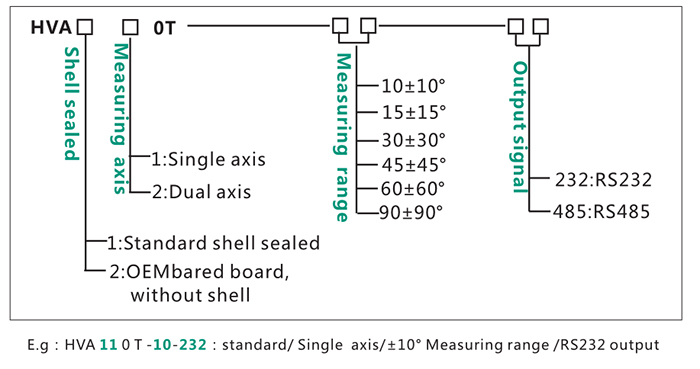

Ordering information

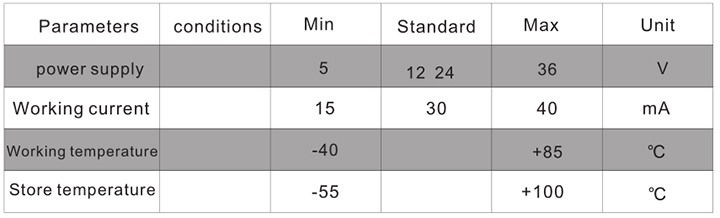

Electrical parameters

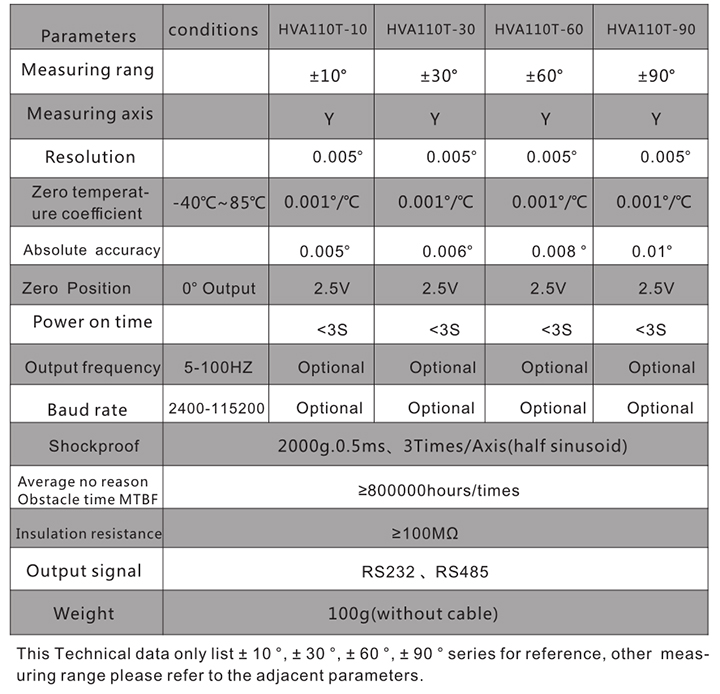

Technical Data
