HVT118T Voltage output inclinometer

●Measuring Range :±1~±90° optional
●Resolution: 0.1°
●Wide voltage input: 9~36V
●Output interface :0~5V
●Working temperature: -40°C~+85°C

Product Details

General Description

The HVT118T is an analog voltage output sensor that allows the customer to calculate the dip value of the current product from the analog voltage output.The product uses MEMS micro-electromechanical import technology, and the product has a small size. Features such as low power consumption, optional measurement range, supply voltage Optional, converted to a tilt angle by gravity sensing changes. Converted to voltage output, the product is easy to use, installerIt is a strong anti-interference ability, and it is an important part of solar energy, wind energy, engineering machinery and automation equipment.Good choice of control (products can be customized)

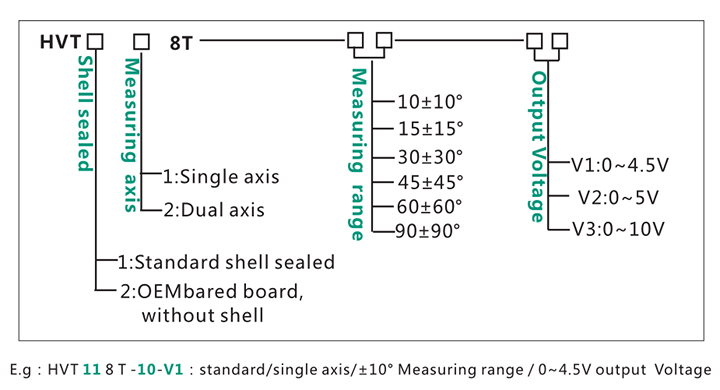

Ordering information

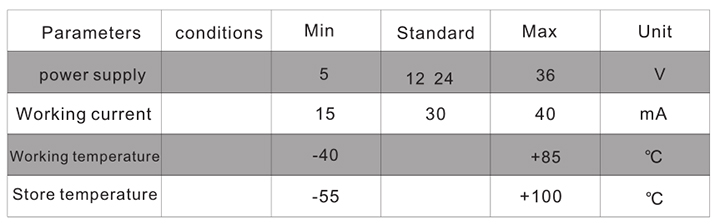

Electrical parameters

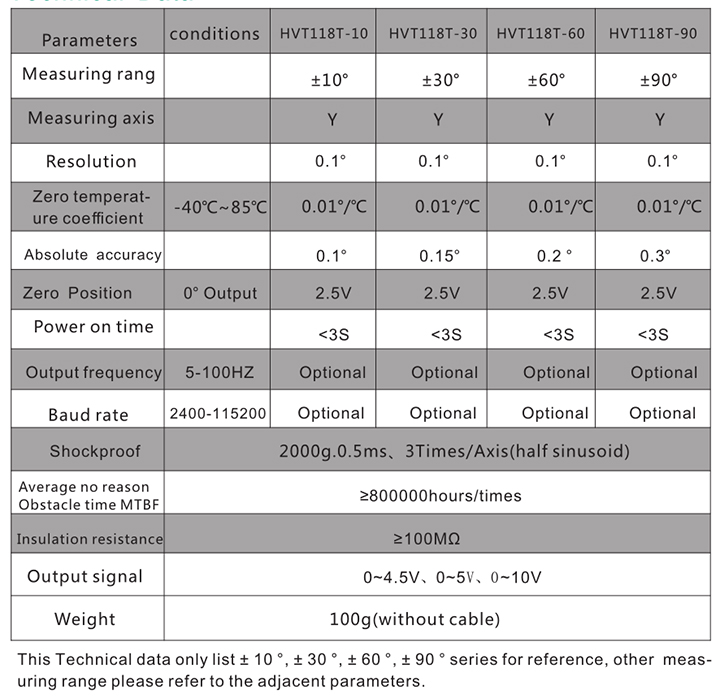

Technical Data
