HVS120 digital inclinometer Sensor

●Measuring Range :±1~±90° optional
●Resolution: 0.01°
●Wide voltage input: 9~36V
●Output interface : 4-20mA
●Working temperature: -40°C~+85°C

Product Details

General Description

HVS120T series is a new generation digital type small size MEMSinclinometer single board with built-in accelerometer. It detect pitch and tilt angle against horizontal levelby measuring static gravity. Output RS232, RS485 or TTL level interface are optional. Due to built-in MCU control system, the output linearity get two amendments, ensuring the accuracy.. It is the best choice for industrial automation control, leveling adjustment, and dam bridge detection. In addi-tion, HVS series products can be based on customers To be customized

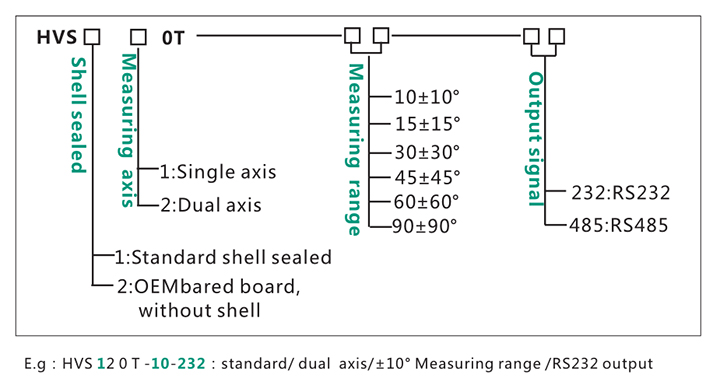

Ordering information

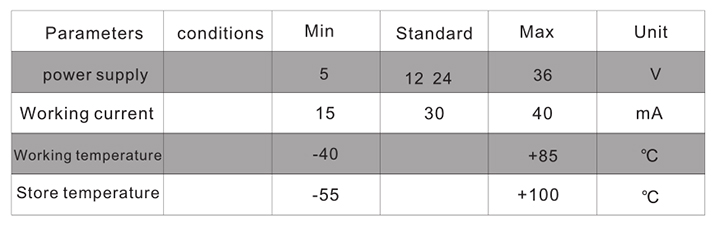

Electrical parameters

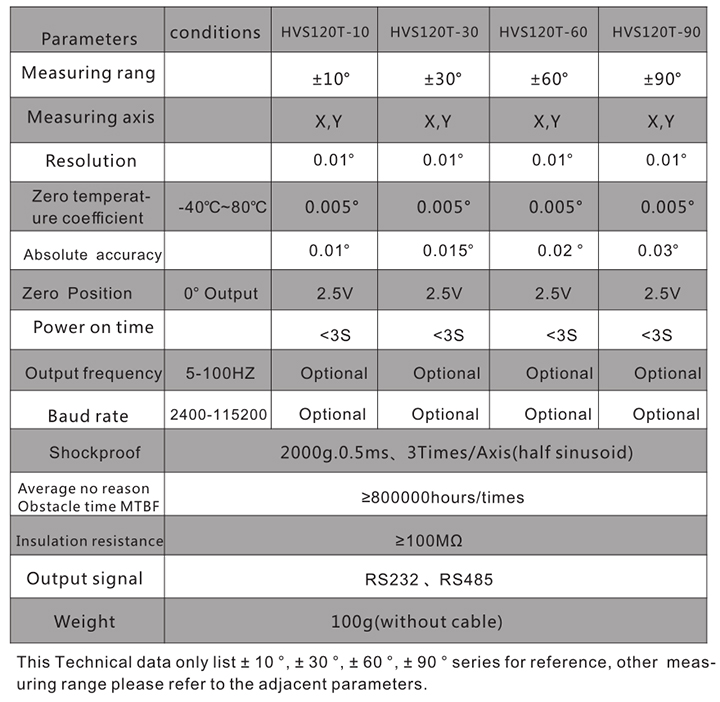

Technical Data
