LVT128T Dual axis switch

●Resolution 0.001°
●9-36V wide voltage input
●RS232 serial port output
●Anti-vibration performance: >2000g
●Working temperature: -40°C~+85°C

Product Details

General Description

LVT118T is a horizontal automatic switch developed by Chuncao Technology Company, which is professionally used in elevators, industrial automation, and horizontal safety alarms.Automatic adjustment with the platform and related industries. The user sets the alarm angle threshold by himself, and the measurement range is ±90°. When the measured inclination angle is greater than the alarm threshold When the value is set, the output line becomes closed (also can be disconnected) when the sensor exceeds the safe inclination value, it will output a non-edge contact relay signal (Drive current 1A), you can open the electronic valve to control the corresponding hydraulic outrigger leveling. Exquisite product design, integrated surge, etc.Comprehensive protection function, suitable for various harsh industrial environments. MEMS technology is also used in product reliability and stability, Small product size, high consistency and stability are the core components of industrial automation.

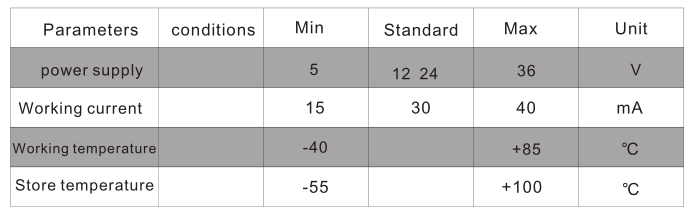

Electrical parameters

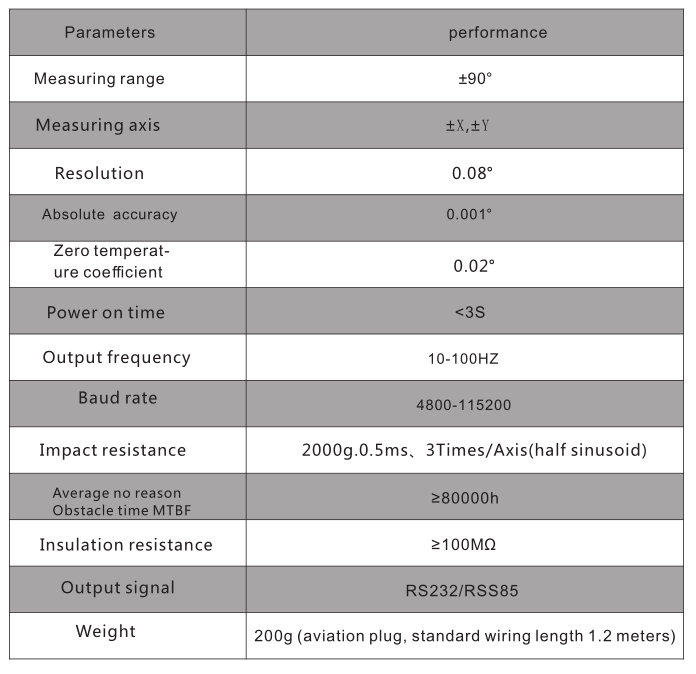

Technical Data
