HVS118T Single axis Inclinometer

●Measuring Range :±1~±90° optional
●Resolution: 0.01°
●Wide voltage input: 9~36V
●Output interface :0~5V
●Working temperature: -40°C~+85°C

Product Details

General Description

HVS118T is a single axis inclinometer with analog voltage output, the user simply collecting the inclinometer voltage value then can calculate the inclination of the current object. Built-in (MEMS) micro solid pendulum into angle changes by measuring the static gravity field changes, changes in mode output voltage (0-5V). ainly used to measure the inclination of the object with respect to the horizontal plane.simple installation. high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

Ordering information

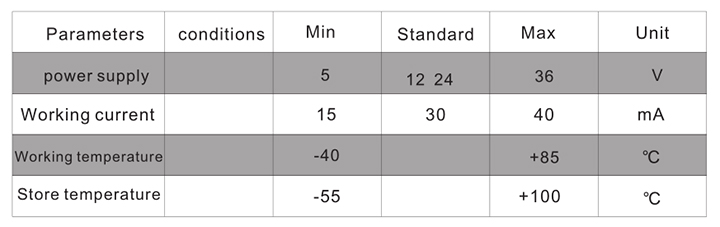

Electrical parameters

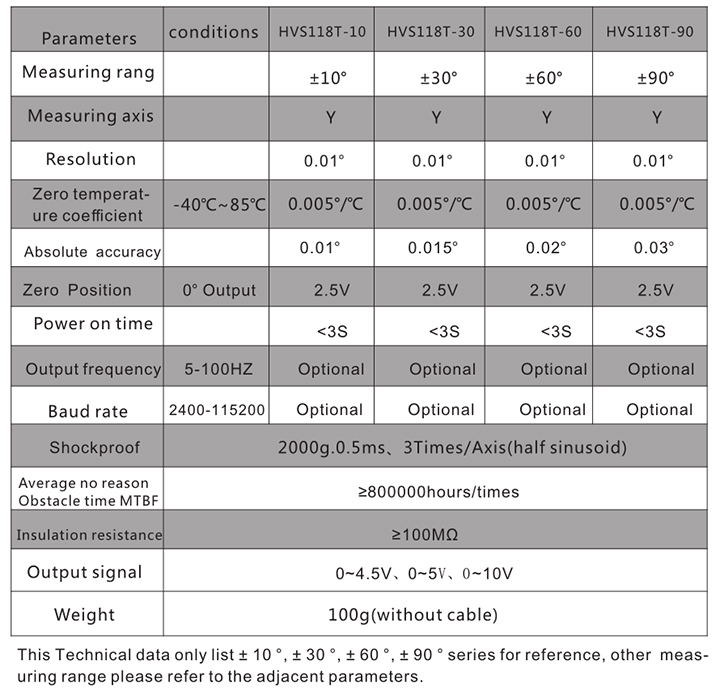

Technical Data
