HVA128T dual axis tilt sensor

●Measuring Range :±1~±90° optional
●Resolution: 0.001°
●Wide voltage input: 9~36V
●Output interface :0~5V
●Working temperature: -40°C~+85°C

Product Details

General Description

HVA128T is a high accuracy dual-axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, The product uses the latest MEMS high technology for production,internal using high-resolution differential digital-toanalog converter, by the internal MCU system secondary linearity and temperature correction, customers no need to do secondary linearity correction, meanwhile also reduces the error caused by environmental changes on the accuracy of the product. Small measuring range, the highest accurate up to 0.005°(bigger measuring range index, please refer to product technical data)

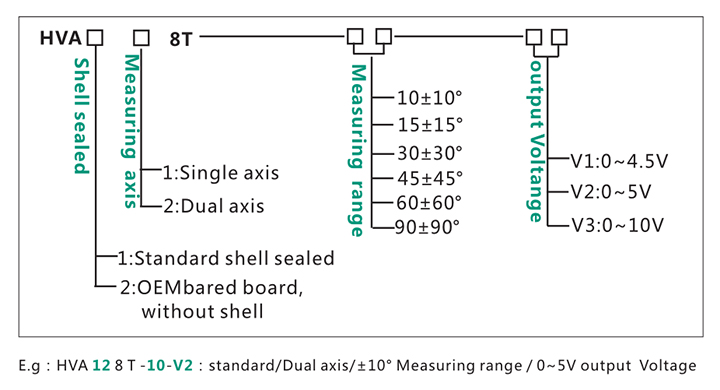

Ordering information

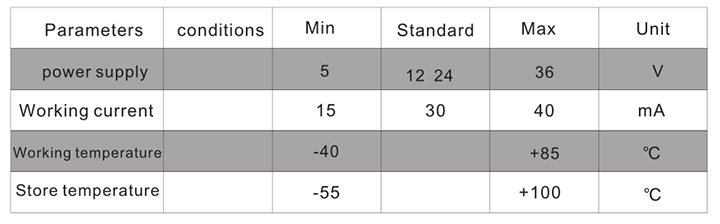

Electrical parameters

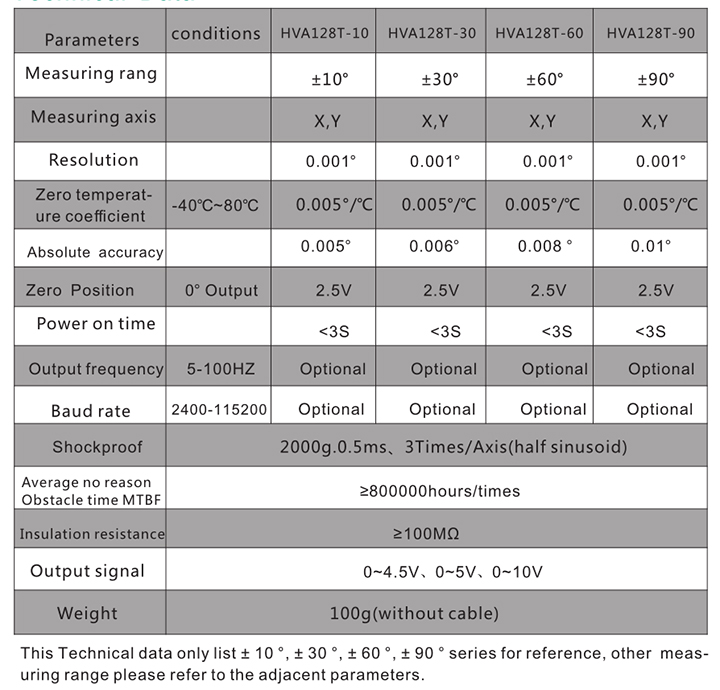

Technical Data
