HVA120T dual axis tilt sensor

●Measuring Range :±1~±90° optional
●Resolution: 0.001°
●DC Wide voltage input: 9~36V
●Output modeRS232、RS485、TTL
●Working temperature: -40°C~+85°C

Product Details

General Description

HVA120T series inclination module is a low-power, high-performance inclination module. The internal use of European original imported MEMS inclination measurement unit, builtin industry standard MCU unit, integrates advanced filtering algorithms to ensure excellent performance of each module Consistency. The HVA column inclination module can select the appropriate output interface according to the actual situation of the customer. It is the best choice for industrial automation control, leveling adjustment, and dam bridge inspection. In addition, HVA series products can be customized according to customers The actual needs to be customized

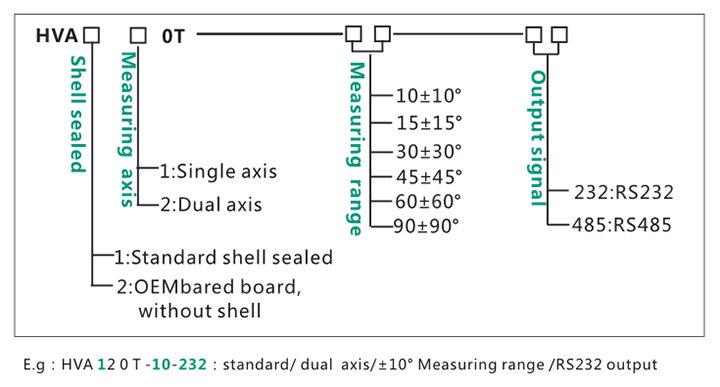

Ordering information

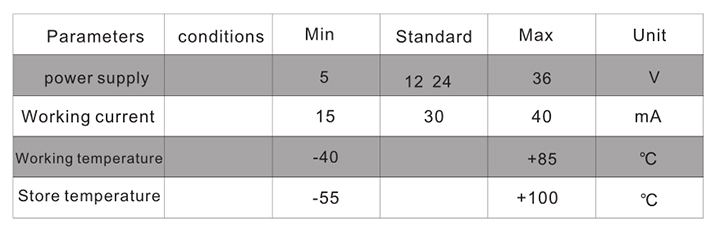

Electrical parameters

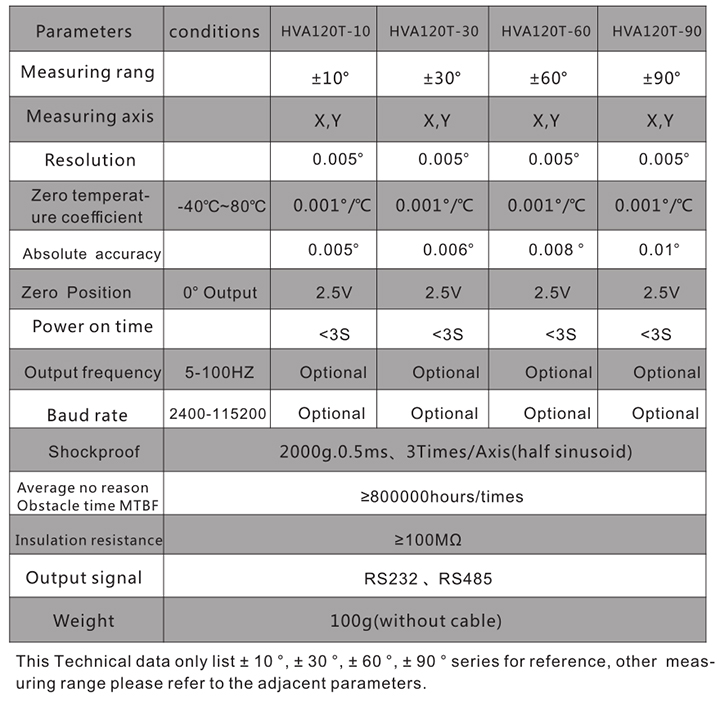

Technical Data
