HVA118T Single axis Inclinometer

●Measuring Range :±1~±90° optional
●Resolution: 0.001°
●Wide voltage input: 9~36V
●Output interface :0~5V
●Working temperature: -40°C~+85°C

Product Details

General Description

HVA118T is a high accuracy single axis inclinometer with analog voltage output,small measuring range and the highest precision up to 0.005°, it is one of the few high precision , It is mainly used to measure the inclination of the object with respect to the horizontal plane , built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change, the changes inmode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by theinternal MCU system secondary linearity and temperature correction, the customer no need to do asecondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.

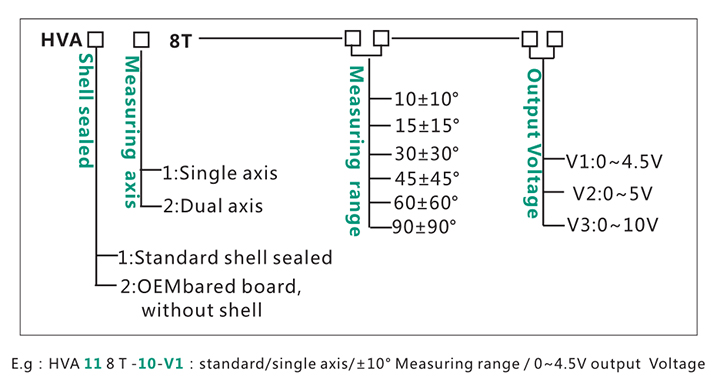

Ordering information

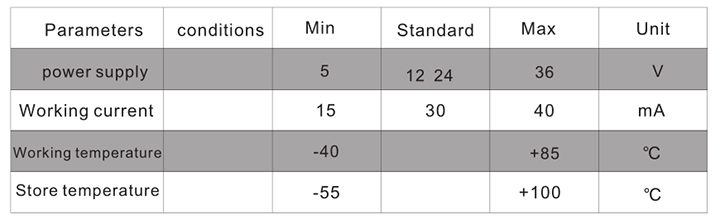

Electrical parameters

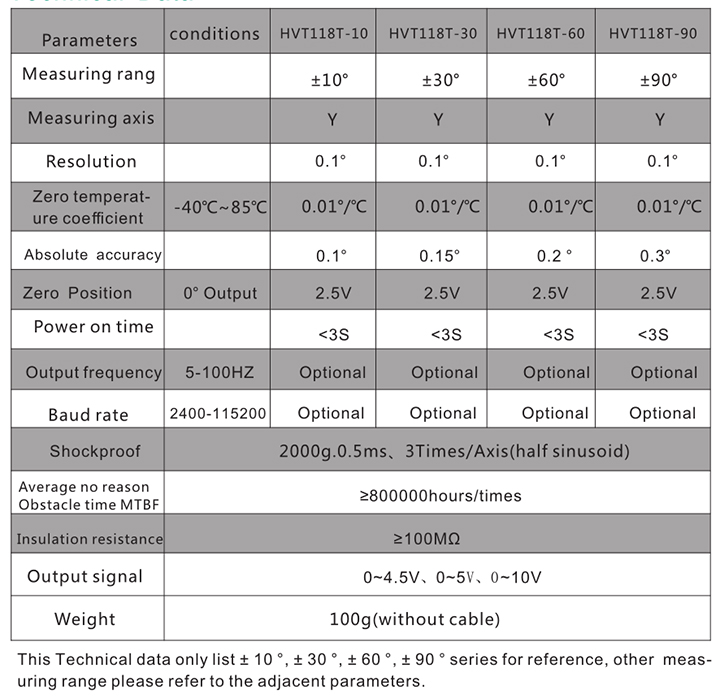

Technical Data
