CH100W Digital Display

●Wide voltage input: 9~36V
●Resolution: 0.001°~0.1°
●Single/dual Axis Inclinometer
●IP67 protection class
●Working temperature: -40°C~+85°C

Product Details

General Description

CH-100W is a digital display inclinometer, is a low-power、 high-performance digital display tilt module. It adopts the MEMS tilt angle measuring unit imported from Europe. It has a built-in industry standard MCU unit and integrates advanced filtering algorithm to ensure The performance of each module has excellent consistency. The appropriate output interface can be selected according to the actual situation of the customer. It is the best choice for industrial automation control, leveling adjustment, and dam bridge inspection In addition, it can be customized according to the customer’s actual situation.

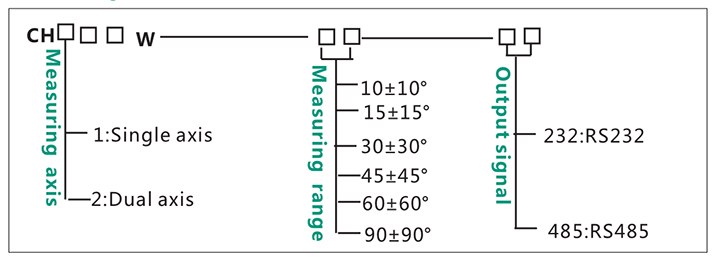

Ordering information

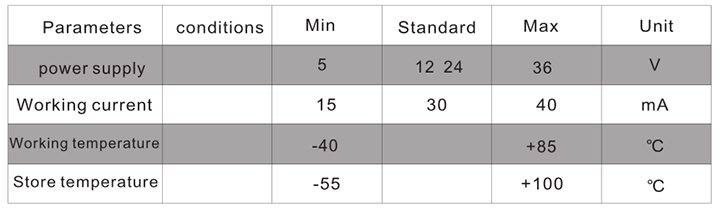

Electrical parameters

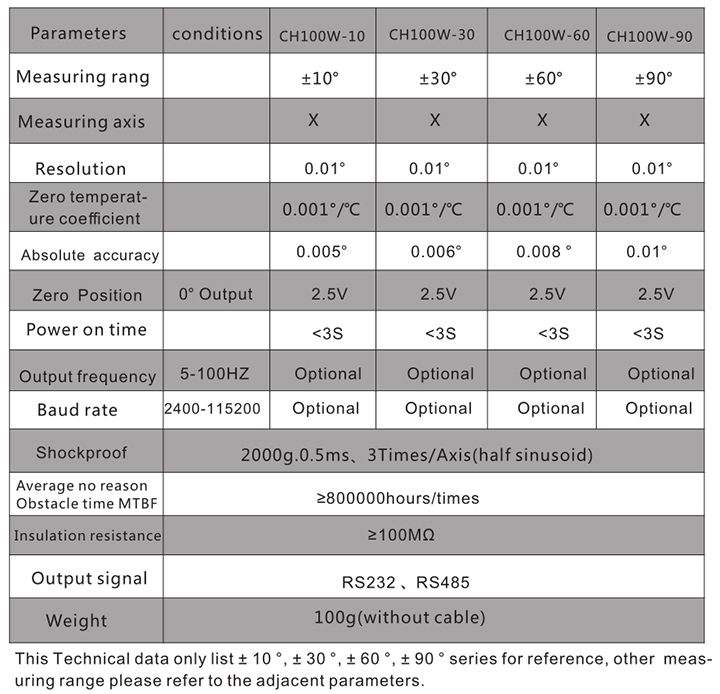

Technical Data
